Dumper Track
DUMPER TRACK

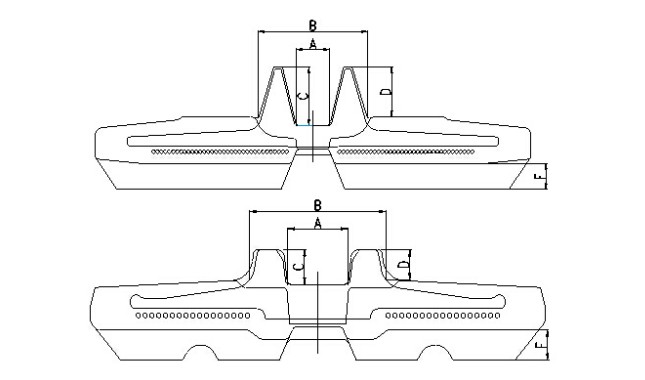

WIDTH*PITCH LINK A B C D F PATTERN GUIDING
300*84N 42-56 22 60 31.5 29 28 AP A2
320*90 52-56 32 86 50 35 28 AA A2
U320*90 56-76 37 85 47 32 29 AA A2
320*100 38-54 29 74 30 25 23 BN A2
320*100W 37-65 38 80 34 25 22 CD A2
350*100 46-60 45 112 45 48 27 AA A2
U380*90 56-76 34 85 48 34 30 AA A2
420*100 50-58 49 99 50.5 36 25 AA A2
450*100 62-76 45 112 57 54 45 AA A2
450*110 74 45 120 64 55 21 AL A2
500*90 76-82 42 94 51 36 30 AA A2
500*100 71 45 112 57 54 45 AL A2
600*100 76-80 44 113 60 49 36 AL A2
600*125 56-64 43 124 76 61 30 AL A2
650*110YM 88 48 114 76 60 34 AL A2
650*120 78 44 130 91 69 38 AL A2
650*125 80 56 170 90 68 44 AL A2
700*100 80-98 48 120 75 59 40 AL A2
T700*100 80-98 48 120 75 56 40 AL A2
700*125 56-64 55 144 68 56 32 AL A2
750*150 66 62 176 94 68 38 AL A2
800*125 80 62 175 95 88 32 AL A2
800*150 62 167 92 62 45 AL A2
800*150YM 67-70 76 158 98 68 40 BC A2
M800*150 66-68 60 148 73 71 35 AL A2
K800*150 67-70 80 189 108 78 35 AL A2
900*150 68-80 80 200 101 66 48 AL A2
1000*150 86 78 210 101 58 37 AL A2
